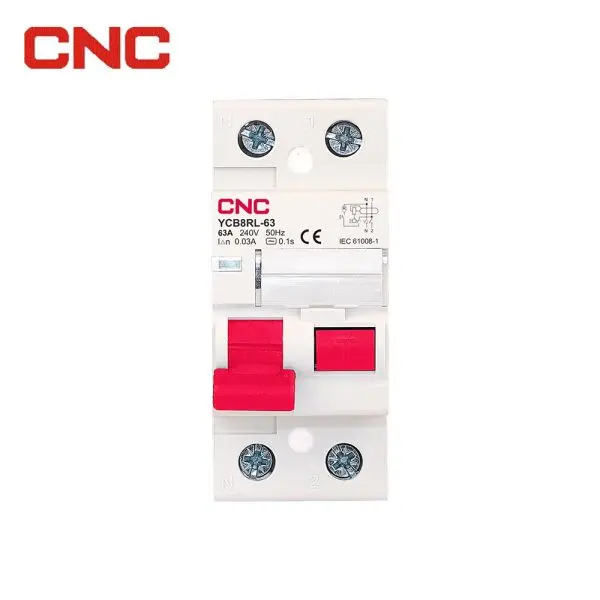

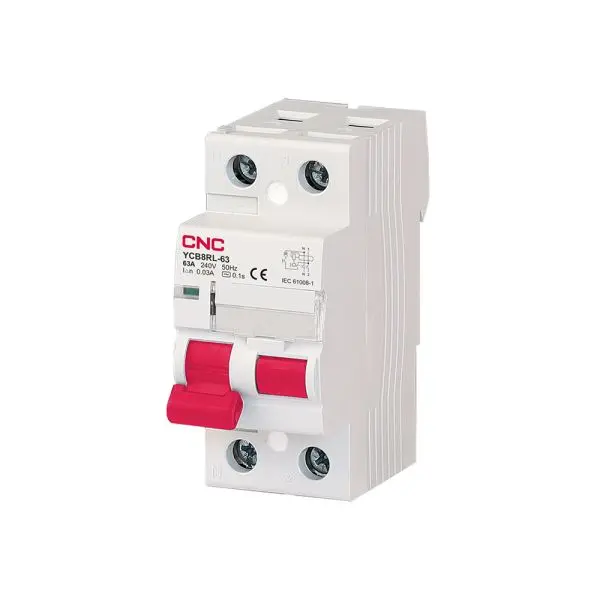

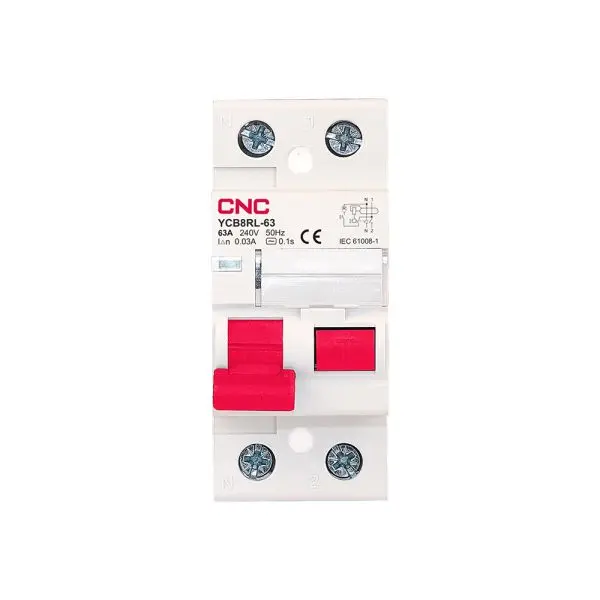

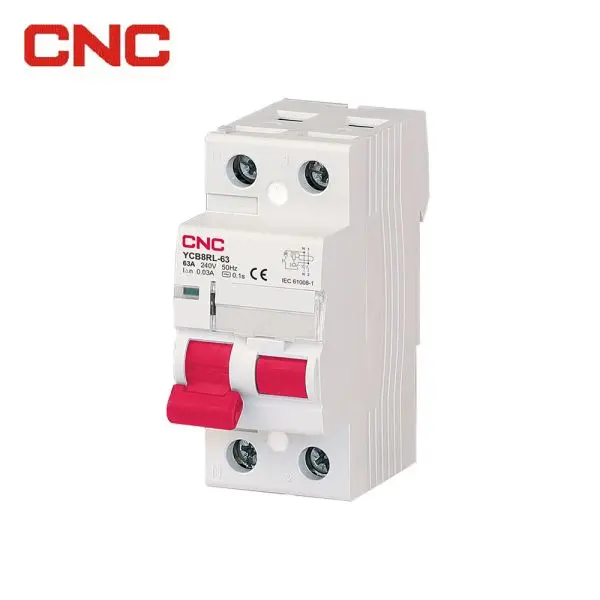

Electromagnetic RCCB YCB8RL-63
Electromagnetic RCCB YCB8RL-63
Sinüzoidal alternatif toprak arıza akımlarının etkilerine karşı koruma
Dolaylı temaslara karşı koruma ve doğrudan temaslara karşı ek koruma
İzolasyon hatalarından kaynaklanan yangın tehlikesine karşı koruma
Kontrol ve Anahtarlama
Konut binalarında, konut dışı binalarda, enerji kaynaklarında, endüstride ve altyapıda kullanılır
Tip tanımı
Teknik Veriler
| Type | Standard | IEC/EN 60898-1 | |
| Electrical features | Rated current In | A | 1,2,3,4,6,10,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 | |
| Rated voltage Ue | V | 230/400 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 30,004,500 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 4000 | |
| Dielectric test voltage at ind.Freq.for 1min | kV | 2 | |
| Pollution degree | 2 | ||
| Thermo-magnetic release characteristic | B,C,D | ||
| Mechanical features | Electrical life | t | 6000 |
| Mechanical life | t | 20000 | |
| Protection degree | IP20 | ||
| Reference temperature for setting of therma element | ℃ | 30 | |
| Ambient temperature (with daily average≤35℃) | ℃ | -5~+40 | |
| Storage temperature | ℃ | -25~+70 | |
| Installation | Terminal connection type | Cable/Pin-type busbar | |
| Terminal size top/bottom for cable | mm² | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm² | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2 | |
| In-lbs | 18 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top or bottom |
Seçimler
| B,C,D | 1.13ln | t≤1h(In≤63A) | Not tripping | B | 3In | t≤0.1s | Not tripping | |
| 1.13ln | t≤2h(In>63A) | C | 5In | t≤0.1s | ||||
| B,C,D | 1.45In | t<1h(In≤63A) | Tripping | D | 10ln | t≤0.1s | ||
| 1.45ln | t<2h(In>63A) | B | 5In | t<0.1s | Tripping | |||
| B,C,D | 2.55ln | 1s<t<60s(In≤32A) | Tripping | C | 10ln | t<0.1s | ||
| 2.55In | 1s<t<120s(In>32A) | D | 20ln | t<0.1s |
Veri Tablosu
Sıcaklık düşüşü düzeltme tablosu
| temperature(℃) | -5 | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Rated current | |||||||||||
| 1A | 1.16 | 1.14 | 1.11 | 1.09 | 1.07 | 1.05 | 1.02 | 1.00 | 0.98 | 0.95 | 0.92 |
| 2A | 2.30 | 2.26 | 2.22 | 2.18 | 2.13 | 2.08 | 2.04 | 2.00 | 1.96 | 1.92 | 1.88 |
| 4A | 4.72 | 4.63 | 4.53 | 4.43 | 4.32 | 4.22 | 4.11 | 4.00 | 3.89 | 3.77 | 3.65 |
| 6A | 6.97 | 6.84 | 6.71 | 6.57 | 6.43 | 6.29 | 6.15 | 6.00 | 5.85 | 5.69 | 5.53 |
| 10A | 12.25 | 11.95 | 11.65 | 11.34 | 11.02 | 10.69 | 10.35 | 10.00 | 9.64 | 9.26 | 8.86 |
| 16A | 18.72 | 18.35 | 17.98 | 17.60 | 17.22 | 16.82 | 16.42 | 16.00 | 15.57 | 15.13 | 14.68 |
| 20A | 23.24 | 22.80 | 22.36 | 21.91 | 21.45 | 20.98 | 20.49 | 20.00 | 19.49 | 18.97 | 18.44 |
| 25A | 29.12 | 28.57 | 28.01 | 27.43 | 26.85 | 26.24 | 25.63 | 25.00 | 24.35 | 23.69 | 23.01 |
| 32A | 37.18 | 36.49 | 35.78 | 35.05 | 34.32 | 33.56 | 32.79 | 32.00 | 31.19 | 30.36 | 29.50 |
| 40A | 46.66 | 45.77 | 44.86 | 43.93 | 42.98 | 42.01 | 41.02 | 40.00 | 38.96 | 37.88 | 36.78 |
| 50A | 58.57 | 57.43 | 56.26 | 55.06 | 53.84 | 52.59 | 51.31 | 50.00 | 48.65 | 47.27 | 45.84 |
| 63A | 74.73 | 73.17 | 71.57 | 69.94 | 68.27 | 66.56 | 64.81 | 63.00 | 61.14 | 59.22 | 57.24 |
Genel ve montaj boyutları (mm)
Genel
Bu seri devre kesici aksesuarları, YCB6-63 devre kesici ile uzaktan kumanda için işbirliği yapılan ev, bina ve diğer elektrik devrelerinde kullanılır ve farklı ihtiyaçlar için seçilen farklı aksesuarlar, yardımcı sinyal, açma ve kapama durumu göstergesi ve hatta devrede daha iyi koruma, kişisel ve mülk güvenliği için alarm sinyali işlevi ile donatılmıştır.
Tip tanımı
Fonksiyonlar
| Accessory name | Code | Function |
| Auxiliary contact | OF | Provide auxiliary signal and control auxiliary circuit |
| Alarm contact | SD | When the circuit breaker is due to a fault,the alarm signal would work and indicate. |
| Shunt release | MX | Over the range of 70%～110%of the rated control supply voltage,the release should trip the circuit breaker to protect the circuit. |
| Shunt release+ Auxiliary contact | MX+OF | Remote control of circuit and control the auxiliary circuit by auxiliary contact. |
| Over-voltage and under-voltage release | MV+MN | When the rated voltage 230V increase to 270V+/-5%or reduce to 170V+/-5%, the circuit breaker should trip for over-voltage and under-voltage protection. |
Kurulumlar
Tüm elektrik aksesuarları devre kesicinin yan tarafına monte edilmelidir, detaylar aşağıdaki şekilde gösterilmiştir. (Not: Her MCB’ye 3 (MAKS.) adet aksesuar takılabilir.)
Çalışma Koşulları
- Ambient temperature: -5℃~+40℃;
- Altitude: Below 2000m;
- Environment: The medium should be no risk of blasting and can't corrode the metal and damage insulating gas as well as conductive dust;
- Installation: 35mm standard din rail.
Teknik Veriler
Auxiliary contact and Alarm contact technical parameters
| Accessory name | Rated current(A) | Number of contacts | ||
| AC 380V | AC 220V | AC 110V | ||
| Auxiliary contact OF | 3 | 6 | 1 | 1NO 1NC |
| Alarm contact SD | 3 | 6 | 1 | 1NO 1NC |
Shunt release,Shunt release+Auxiliary contact technical parameters
| Accessory name | Rated insulation voltage Ui | Rated control voltage Us | Tripping power consumption (W or VA) | Operation voltage Us |
| Shunt release MX | 415V | AC/DC:220~380V 110~220V | 240 | 0.7~1.1 |
| AC/DC:24~48V | 120 |
Under-voltage &Over-voltage Release technical parameters
